MEASUREMENT SYSTEMS FOR THE STEEL INDUSTRY


Width measurement

Related products

Crop optimization Flatness measurement

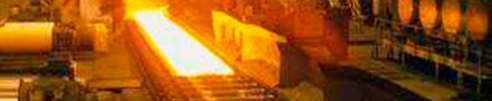

OPTOLOGIC offers complete optical width gauging systems for hot- and cold-rolling mills. They ensure a permanent non-contact quality control and optimisation of products. The modular system is designed to meet different needs. The central unit of all measuring systems are the smart high-resolution line scan cameras developed particularly for this application.




Details
  • Systems for hot- and cold-rolling mills
  • Inexpensive single- and multi-camera systems
  • Stereoscopical width gauging systems with two or four smart line scan cameras for highest precision
  • Optional backlight or laser front lighting (sheet temperature < 700°C)
  • Software for parameterizing and the numerical and graphical display of the measuring results
  • Remote maintenance possible

Technische Daten
  • Maximum width: up to 5.000 mm
  • Measuring accuracy: up to +/- 0.03 mm
  • Measuring rate: up to 3 kHz
